The VLX 100 Double Swing door is a paired aluminum French door system built for homeowners in Ventura who want wide, unobstructed openings without sacrificing thermal performance or security. These doors swing outward or inward in a symmetrical pair, creating a clean architectural focal point between living spaces and patios, decks, or courtyards. As an authorized ViewLux installation partner, Juniper Windows Ventura supplies, fits, and stands behind this door line across Ventura, Oxnard, Camarillo, and the surrounding coastal communities. We measure, order, install, and warranty the entire job under one roof. Call (559) 314-1305 to talk through your project.

Call (559) 314-1305

Product Overview – VLX 100 Double Swing / French Door

The VLX 100 series is a paired aluminum door system that reads as true French doors: two full-height panels meeting at a center line, with matched sightlines on both leaves. Where this product departs from wood or vinyl French doors is in the frame material. The aluminum extrusion is a 2.56-inch profile with a 0.098-inch wall thickness, which gives the door real torsional stiffness. In a wide opening, that stiffness is what keeps each panel from sagging or dragging at the latch over years of daily use.

The flush threshold is a defining feature for buyers here in Ventura. You get a nearly level transition from interior floor to exterior deck or patio, which matters for accessibility, for rolling a grill or stroller through, and for the visual line between inside and out. No raised saddle to trip on.

The lock hardware is multi-point: turning the handle throws bolts at multiple points along the door height, not just a single latch. That engages the frame at the top, bottom, and center, which changes what the door does in a forced-entry attempt and also helps the closed door seal tighter against the gasket. For a coastal home in Ventura, that tighter seal is doing double duty: better sound isolation and less air movement through the door plane.

We’re straightforward with buyers about why this series gets specified in coastal California: the aluminum holds its geometry in salt air and UV exposure, the factory paint and anodize finishes don’t chalk out the way powder-coated steel does, and the panels are light enough for daily operation despite the strength of the extrusion. If you’ve had a swelling wood door or a warped vinyl door before, the switch is noticeable.

Technical Specifications

The sheet below breaks down what you’re actually buying. These are factory numbers, not marketing copy.

• Frame material: Extruded aluminum, 0.098-inch wall thickness.
• Profile width: 2.56 inches.
• Maximum span: Up to 96 inches wide across the full door system.
• Configuration: Double swing, both panels operational.
• Threshold: Flush threshold standard for level interior-to-exterior transition.
• Locking: Multi-point lock hardware engaging frame at multiple points.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable screen or none.
• Performance standards: Thermal break technology, NFRC-rated energy performance, AAMA 2400/2410 installation compliance, AAMA 812 sealant specification.

Call (559) 314-1305 and we’ll help you settle the glass and finish combination that fits your home and your budget.

Performance Features

Thermal Efficiency

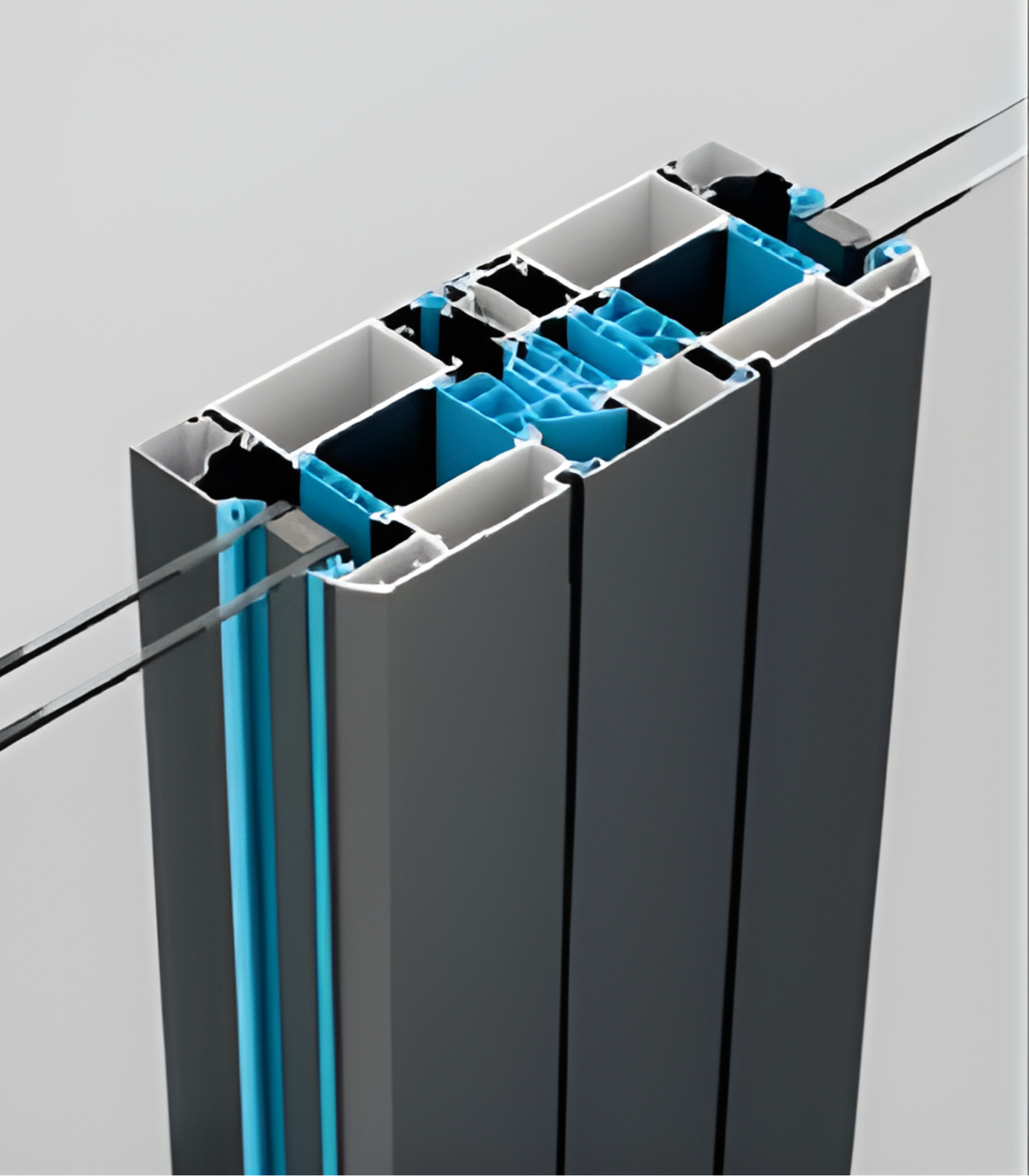

The frame carries a thermal break separating interior and exterior aluminum faces. In a Ventura climate, that break is what keeps the inside face of the door from going cold on January mornings and from conducting heat straight through the aluminum on August afternoons. NFRC-rated glass packages let you choose the performance level you need.

Acoustic Performance
If you live near the 101, the train tracks, or a busy street in Midtown Ventura, the right glass package matters more than the frame. Laminated glass in the VLX 100 does meaningful work against traffic noise. The multi-point lock also tightens the closed panel against the gaskets, which reduces sound leaking around the door perimeter.

Airtightness & Weather Seal
The factory gasket system runs continuous around both panels. When the multi-point lock pulls the door shut, it compresses that gasket evenly along the full height. That produces an air seal you can feel on a windy day: no draft at the center meeting stile, no whistle at the corners.

Waterproofing
This is an aluminum door system engineered for wet climates. The frame has a built-in drainage path that moves water out through the sill rather than letting it pool against the seal. Installed correctly with AAMA 812 low-expansion foam on all perimeter joints, the door is built to handle winter rain bands that hit Ventura off the Pacific.

Wind Resistance
The 0.098-inch wall extrusion and the stiffness of a 2.56-inch profile give the VLX 100 the structural capacity to hold up under wind-load requirements in Ventura County. For openings up to 96 inches, the paired-panel design distributes wind force across both panels and the center engagement, rather than leaning on one latch point.

Security & Hardware
Multi-point locking hardware bolts at the top, bottom, and center of the active panel. That is a different animal from a single deadbolt. It resists prying far better and keeps the door seated correctly over time. For anyone replacing an old sliding door with a French door in Ventura, this is the feature worth paying for.

Color & Glass Options

The VLX 100 comes in six factory finishes. Premium Black is the strongest choice for modern and contemporary homes: it gives the door a defined frame line that reads well against stucco and light interiors. Pure White suits traditional Ventura homes with classic trim, blending the door into the wall plane rather than making it a feature. Anodized Silver is the most honest expression of aluminum: a matte metallic finish that resists salt air well and works on mid-century and industrial style homes. Bronze and Champagne are warmer metallics, good matches for homes with darker bronze window frames or fixtures. Teak Wood is a powder-coated woodgrain effect for anyone who wants the look of a stained wood door without the upkeep of wood in a coastal climate.

Glass selection is driven by need. Clear is standard and cheapest. Low-E cuts heat gain, which matters on west-facing openings in East Ventura. Tempered is the safety-glass standard for doors. Laminated adds impact resistance and sound reduction, and is the upgrade we recommend most near the coast. Frosted and Obscure give privacy while keeping the light: good for a door leading to a shared courtyard or a street-facing side entry.

Installation by Juniper Windows Ventura in Ventura

The best door in the world will fail if it’s installed out of square. That’s the plain fact. A door improperly set will bind at the latch, leak at the sill, and void the manufacturer’s warranty. Juniper Windows Ventura installs every VLX 100 to AAMA 2400/2410 standards, which is the recognized national benchmark for fenestration installation. Every point of our process is designed around the specific conditions here in Ventura.

We start with a pre-install inspection of the rough opening. We check the framing for square, level, and adequate load-bearing to carry the weight of a 96-inch double door system. If the rough opening needs correction, we address it before the door arrives. Then we set the frame level, plumb, and square; shim only where the structure calls for it; and secure the frame per the manufacturer’s engineering spec. We use AAMA 812 rated low-expansion foam sealant on all perimeter joints, which keeps air and water moving where they should: out, not through.

After the panels are hung, we adjust the multi-point hardware so all bolts fully engage without hammering. We run a final water test on the sill and threshold, and we check gasket contact around the full perimeter. Then we clean the glass, bag the construction debris, and walk you through operation, locking, and maintenance. The same crew that measures your opening installs your door. We don’t subcontract the most important part of the job.

In a Ventura coastal climate, the extra steps matter. Salt air corrodes unsealed hardware over time. Building movement from heat and moisture cycling works on caulk joints. A properly executed AAMA 2400/2410 installation is your protection against both. Call (559) 314-1305 to schedule a measurement.

Frequently Asked Questions – VLX 100 Double Swing / French Door

Get a Quote – VLX 100 Double Swing / French Door in Ventura

The VLX 100 is a serious upgrade for any Ventura home: stronger, tighter, and lower-maintenance than wood or vinyl French doors. If you’re considering one, start with a real number. Juniper Windows Ventura provides free on-site measurements and written quotes with no change orders. Call (559) 314-1305 and tell us about your project.

Written by the team at Juniper Windows Ventura, authorized ViewLux installation partner serving Ventura, CA.
